com.WebServiceEngine.RegisterRestOpenAPIHandler

Registers a callback function that dynamically modifies OpenAPI documentation for a REST service.

Syntax

com.WebServiceEngine.RegisterRestOpenAPIHandler(
   service_name STRING,
   FUNCTION my_callback )
  1. service_name specifies the name of the REST service for which the callback function will be invoked.
  2. FUNCTION my_callback is the callback function that will be invoked when a client requests the OpenAPI documentation for the specified service. For more information on using a FUNCTION reference, go to Function references.

Callback Function Signature

The callback function must follow this signature:

FUNCTION my_callback(openapi util.JSONObject) RETURNS util.JSONObject

  1. The function name is not fixed and may be chosen as needed.

  2. openapi: The parameter name is strict and cannot vary. The generated OpenAPI document is a JSON object (util.JSONObject).
  3. Return value:
    • util.JSONObject: The modified OpenAPI documentation
    • NULL: Returns an HTTP 500 error to the client

Usage

Use this method to register a callback function that will be invoked when a client requests the OpenAPI documentation for a REST service. This allows you to dynamically modify the OpenAPI JSON specification before it is returned to the client.

The callback function receives the generated OpenAPI documentation as a util.JSONObject and returns a util.JSONObject with the updated OpenAPI specification. If the callback function returns NULL, an HTTP 500 error is returned to the client. If the service is not registered before running RegisterRestOpenAPIHandler, error-15584 is thrown.

For example: This callback updates the info.version field and adds two custom fields:

FUNCTION my_callback(openapi util.JSONObject) RETURNS util.JSONObject
    DEFINE info util.JSONObject
    # Get the 'info' section
    LET info = json.get("info")

    IF info IS NOT NULL THEN
        # Modify existing field
        CALL info.put("version", "35.0")
        # Add custom fields
        CALL info.put("x-custom-field", "Modified by handler")
        CALL info.put("x-version-custom", "2.0-custom")
    END IF
    RETURN openapi
END FUNCTION

#...
CALL com.WebServiceEngine.RegisterRestService("myservice", "callback_modified")
CALL com.WebServiceEngine.RegisterRestOpenAPIHandler("callback_modified", FUNCTION my_callback)

OpenAPI generation errors

If the OpenAPI generation fails, the web service returns an HTTP 500 error to the client with the message Failed to generate OpenAPI documentation. The GWS engine also returns error-38, and the developer can retrieve technical details of the error in sqlca.sqlerrm.

GWS engine

When you retrieve the OpenAPI description (appending ?openapi.json or ?openapi.yaml to the service URL), the GWS engine applies the callback to the OpenAPI document before returning it to the client. The example below shows the modified JSON output.

The output shown in this example is from the Firefox™ browser, which formats JSON for readability. The appearance may vary depending on your browser.

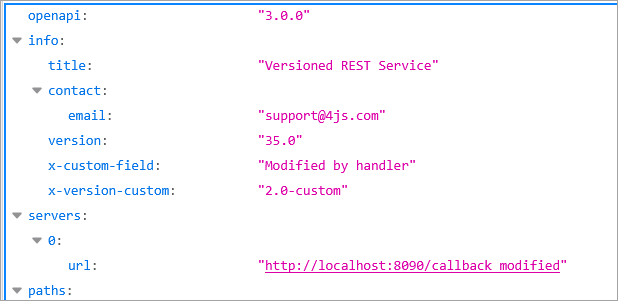

Figure: Example OpenAPI excerpt modified by the callback

Image shows OpenAPI documentation with custom fields

In case of error, the method throws an exception and sets the status variable. Depending on the error, a human-readable description of the problem is available in the sqlca.sqlerrm register. See Error handling in GWS calls (status).
