Horizontal box splitting

HBOX/VBOX containers can be defined to display a single child container.

HBOX/VBOX single content display

By default, HBOX and VBOX elements show all child containers. When the HBOX or VBOX is oriented horizontally (see HBOX/VBOX orientation), you can force the box to display a single child container at a time, by using the SPLIT[@screen-size] attribute.

Note:

The SPLIT attribute takes only effect when the HBOX or VBOX is oriented horizontally.

The SPLIT attribute can be specified with @screen-size modifier, to get the required rendering, depending on the size of the screen. For example, on mobile devices with small screens, there is usually only room to display a single child container.

When SPLIT is in action with desktop / web browser front end, is it possible to move between child containers by using a dedicated widget. The type of widget can be controlled with the navigationArrows / navigationDots style attributes.

On mobile devices, the end user can use the swipe gesture to switch between the child containers. To deny the swiping (and thus force the first child container to be the only visible element), use the NOSWIPE attribute for the HBOX or VBOX element.

For the complete syntax, see SPLIT attribute.

Form example defining a swipable splitview

Form definition file, note that:

The HBOX element gets a SPLIT attribute that should only have an effect on small screens.
The TABLE uses STRETCHCOLUMNS to occupy all the space available for that container.
The field12 EDIT is defined with STRETCH=X to stretch all fields of the parent GRID.

LAYOUT ( STYLE="main2" )
HBOX ( SPLIT@SMALL )
GRID grid1
{
Field11: [f11         ]
Field12: [f12     ]
Field13: [f13         ]
}
END
TABLE table1 ( STRETCHCOLUMNS )
{
 Col21  Col22     Col23
[c21   |c22      |c23       ]
[c21   |c22      |c23       ]
[c21   |c22      |c23       ]
}
END
END -- HBOX
END

ATTRIBUTES
EDIT f11 = FORMONLY.field11, STRETCH=X;
COMBOBOX f12 = FORMONLY.field12, ITEMS=("aaa","bbb");
DATEEDIT f13 = FORMONLY.field13;
EDIT c21 = FORMONLY.col21;
EDIT c22 = FORMONLY.col22;
DATEEDIT c23 = FORMONLY.col23;
END

INSTRUCTIONS
SCREEN RECORD sr1(FORMONLY.col21 THRU FORMONLY.col23);
END

Visual result with a small screen size (SPLIT enters in action):

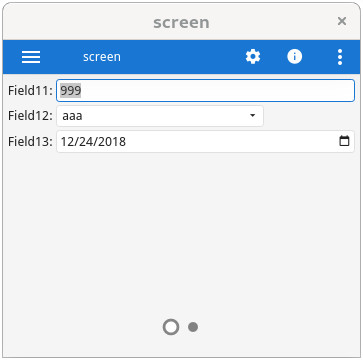

Screenshot of form showing only grid container — Figure: Form with horizontal box in small window: GRID container

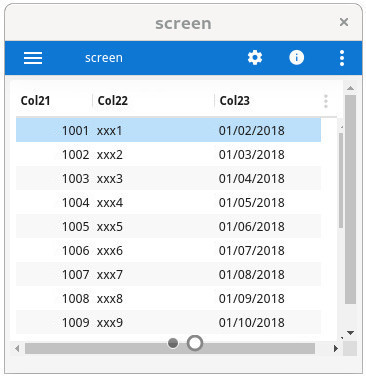

Screenshot of form showing only table container — Figure: Form with horizontal box in small window: TABLE container

Visual result with a medium screen size (SPLIT is ignored):

Screenshot of form with hbox showing grid and table side by side — Figure: Form with horizontal box in medium window
