HBOX/VBOX orientation

HBOX/VBOX containers can be defined to adapt to the screen size.

HBOX/VBOX horizontal fit

HBOX and VBOX can be defined with the ORIENTATION attribute, to force the sub-elements or sub-containers to align vertically or horizontally, depending on the display area width.

HBOX and VBOX elements can be oriented automatically for a given screen size, depending on an abstract size specification, with the ORIENTATION@screen-size attribute syntax.

An HBOX is by definition oriented horizontally, while a VBOX is by default oriented vertically: It is not required to specify an ORIENTATION@screen-size attribute in the natural direction of the box.

For the complete syntax, see ORIENTATION attribute.

Form example using the ORIENTATION attribute

The following example defines orientation attributes for a VBOX to get a responsive layout. With this definition, the GRID will appear on top of the TABLE in small screens (using vertical orientation). On medium and large screens, the GRID will appear on the left of the TABLE (using horizontal orientation).

Notes:
  1. The VBOX element is by essence a vertical box, and therefore would not require the ORIENTATION@SMALL=VERTICAL attribute. It is used here for better understanding.
  2. The VBOX element also defines the SPLITTER attribute, to get a splitter between the grid and the table.
  3. The field11 has a STRETCH=X attribute, so that the grid elements strech to the available width, depending on the vertical or horizontal orientation of the box.
Form definition file:
LAYOUT ( STYLE="main2" )
VBOX (
 ORIENTATION@SMALL  = VERTICAL,   -- (optional)
 ORIENTATION@MEDIUM = HORIZONTAL,
 ORIENTATION@LARGE  = HORIZONTAL,
 SPLITTER
)
GRID grid1
{
Field11: [f11         ]
Field12: [f12     ]
Field13: [f13         ]
}
END
TABLE table1
{
 Col21  Col22     Col23
[c21   |c22      |c23       ]
[c21   |c22      |c23       ]
[c21   |c22      |c23       ]
}
END
END
END

ATTRIBUTES

EDIT f11 = FORMONLY.field11, STRETCH=X;
COMBOBOX f12 = FORMONLY.field12, ITEMS=("aaa","bbb");
DATEEDIT f13 = FORMONLY.field13;

EDIT c21 = FORMONLY.col21;
EDIT c22 = FORMONLY.col22;
DATEEDIT c23 = FORMONLY.col23;

END

INSTRUCTIONS
SCREEN RECORD sr1(FORMONLY.col21 THRU FORMONLY.col23);
END

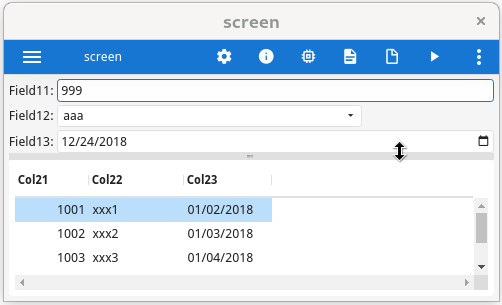

Visual result with a small screen size (orientation is vertical):
Figure: Form with vertical box in small window

Screenshot of form with vertical box in small window

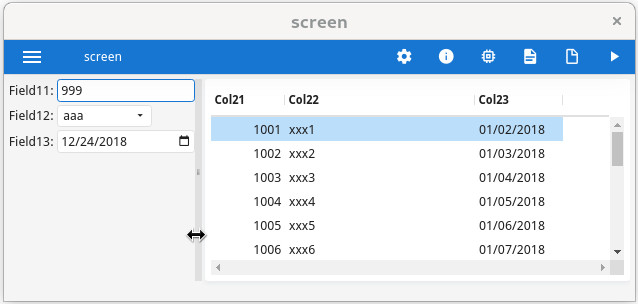

Visual result with a medium window (horizontal orientation is used):
Figure: Form with horizontal box in medium window

Screenshot of form with horizontal box in medium window
