Analyze code

Follow these steps to learn how to reverse engineer an application with Dependency and Sequence diagrams, resources provided by Genero Code Analyzer.

  1. Right-click the OfficeStore Group node and select Open Dependency Diagram.
    Dependency diagrams display a graphical view of the complex relationships between components of a project and can be opened at the group or application level.

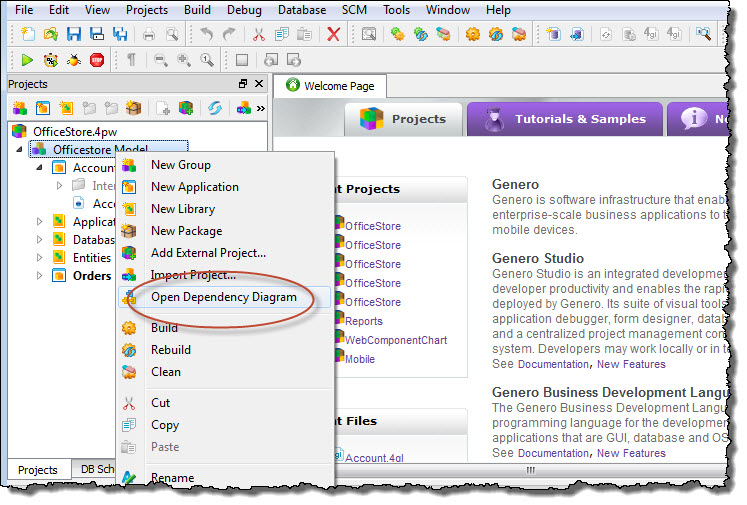

    Figure: Option to open a Dependency Diagram

    This figure shows how to open a Dependency diagram at the project group level.
  2. Right-click the Entities node in the Dependency diagram and select Expand from the context menu.
    The Entities node expands to display all the sub-components and the relationships between them. Use Ctrl-mouse wheel to zoom in and out.

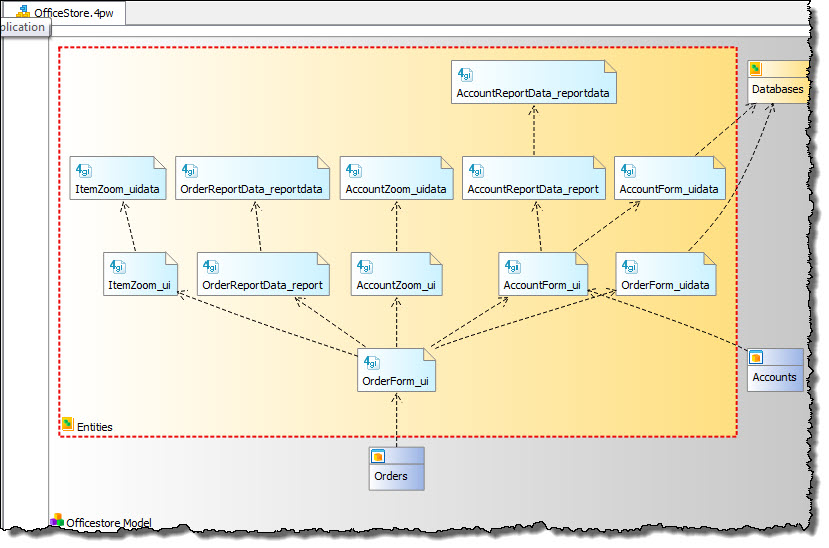

    Figure: The expanded Entities node

    This figure shows the Dependency diagram for the OfficeStore project with the Entities node expanded.
  3. Use a Dependency diagram filter to focus on the dependencies between components of the Accounts application:
    1. Right-click anywhere in the Dependency diagram margins and select Filter Items...
    2. In the Select items to filter dialog, deselect Orders.
    3. Press OK.
    Figure: The Filter view

    This figure shows the Filter view with the Order node deselected to show only Accounts application dependencies.
  4. Select the link between AccountForm_ui and AccountForm_uidata to display associated function calls in the Function calls view.
    Details about function calls between the selected modules are shown in the Function calls view and the project structure displays as a tree in the Dependency Diagram Structure view.

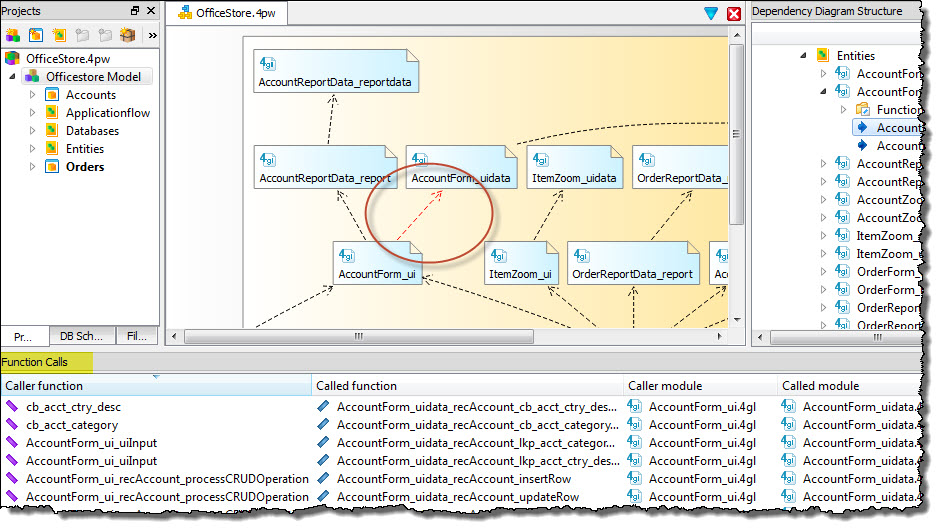

    Figure: The Function Calls view

    This figure shows the selected link between the AccountForm_ui and AccountForm_uidata nodes in the Dependency diagram and the resulting details about the function calls in the Function Calls view.
  5. Right-click on the AccountForm_ui_uiInput function in the Function Calls or Dependency Diagram Structure view and select Open Sequence Diagram.
    The diagram shows the logic flow of AccountForm_ui_uiInput, with the starting point indicated by the stick-figure representing the user who interacts with the application. The boxes represent functions in the AccountForm_ui.4gl module, and the sequence is indicated by the order in which the boxes are listed. Plus/minus signs on each box allow you to display or hide sub calls.

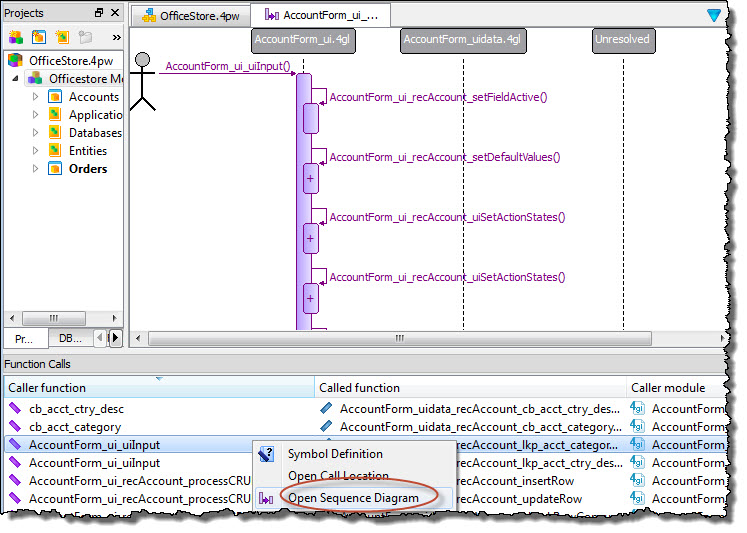

    Figure: A Sequence diagram

    This figure is a screenshot showing a Sequence diagram of the AccountForm_ui_uiInput function.
  6. Right-click the box for the AccountForm_ui_recAccount_setDefaultValues function and select Show Sub Calls.
    The box is expanded to show the AccountForm_ui_recAccount_clearCascade() subcall.
    Figure: Sequence diagram with expanded function box

    This figure shows the AccountForm_ui_recAccount_setDefaultValues function box expanded to show the AccountForm_ui_recAccount_clearCascade subcall.
  7. Close the AccountForm_ui_uiInput Sequence diagram tab and OfficeStore.4pw Dependence diagram tab in the Code Editor view to complete the tour.
