Run the OfficeStore demo

Follow these steps to run the OfficeStore demo using the Genero Desktop Client (GDC) and the Genero Browser Client (GBC).

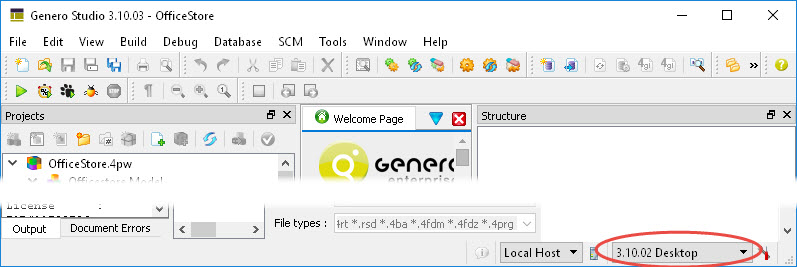

  1. Select the Desktop configuration.
    Figure: Selecting the Desktop configuration.


  2. Expand the OfficeStore project. Right-click on the Orders node and select Execute.
    Figure: Executing a program

    This figure is a screenshot showing how to execute an application in Project Manager.
  3. Navigate the Orders program to browse records, add a new item to an order, and modify the shipping address.
    1. Use the Next and Previous options in the Toolbar to browse the records.
    2. Click Modify to edit a record.
    3. Add a new item to the order. Select an item in the item list and click Append. In the Number field enter 100 .
    4. Tab to the Item Id field and click ... to bring up a list of options. Click the Product Name column header to sort the rows. Find the product name Basketball and double-click to add this item to the order.
    5. Tab to the Quantity field and enter 5.
    6. Click on a different item. You are prompted to save your changes: select Yes.
      Your item is added to the order.
    7. Select the Order Date field and use the calendar to select a new date.
    8. Select the Shipping tab. In the Address field enter 4, Rue Beethoven.
    Figure: Program running in GDC

    This figure is a screenshot of an application running in the Genero Desktop Client.
  4. Select File > Exit to exit the Orders program.

Run the same Orders program using the Genero Browser Client (GBC).

  1. In the lower right corner, change the display configuration to Web.
    Figure: Change display to Web

    This figure shows how to change the display configuration to the web client.
  2. Right-click on the Orders node and select Execute.
    Figure: An application running in a browser with the default configuration for Genero Web Client

    This figure is a screenshot of an application running in the Genero web client.
  3. Navigate the Orders program in the Genero Browser Client.
  4. Select File > Exit to exit the Orders program.
