Attach the Graphical Debugger to a mobile process

Complete this procedure to attach the Graphical Debugger to a running mobile process.

Before you begin:

  • Genero Studio is set to use a mobile configuration.
  • The mobile application was packaged and deployed with the Mobile Debug Package environment set selected.

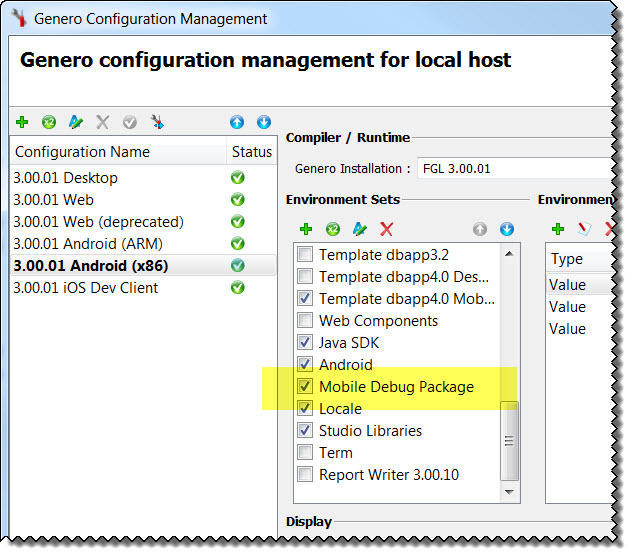

    Figure: Genero Configuration Management dialog


    See Create a debug version of a deployed app.

  1. Run the debug version of your deployed app.
  2. Select Debug > Attach to Mobile Process.
    This option uses your current configuration to connect to the mobile device.

With the debug session open, follow the procedures for using the Graphical Debugger.

Note: For details of attaching to and debugging a mobile app on a physical mobile device or emulator using the command line tool, fgldb, see the Debugging on a mobile device topic inGenero Business Development Language User Guide.
