Create the Business Application diagram (4ba)

The Business Application diagram will contains a program and a form.

  1. Select File > New > Genero BAM Desktop (for desktop applications) or File > New > Genero BAM Mobile (for mobile apps). Under the section Application Modeling, select Business Application Diagram (4ba) and click OK.
    A blank diagram (.4ba) opens.
  2. Right-click on the blank diagram and select New > Program.
  3. Right-click on the blank diagram and select New > CRUD Form.
  4. Right-click the Program entity, and select Add Relation To. Click and drag from the Program to the Form entity to create a relation from program to form.

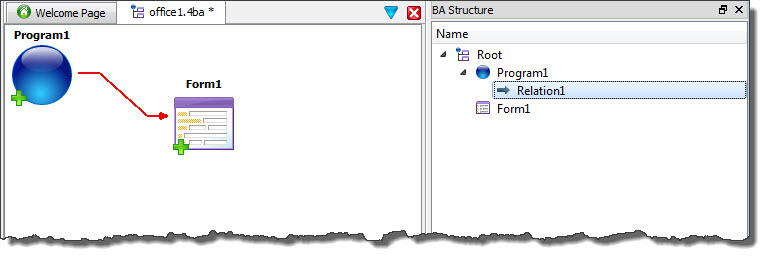

    Figure: Defining a relationship


    This figure is a screen shot of a relationship being defined between the Program and the Module.
  5. Save and name the BA Diagram (4ba) to your file structure and to the Application node in the project.
  6. Save the changes to your project.
