Row highlighting in TREE

TREE containers can be configured with presentation styles, to control row highlighting, using specific foreground and background colors.

Purpose of row highlighting style attributes

TREE containers use a default rendering for the current row (i.e. tree node) when controlled by DISPLAY ARRAY dialog.

The following style attributes can be combined to change the rendering of the current node in a treeview container:
  • highlightCurrentRow (yes/no): Controls current row highlighting.
  • highlightColor: Defines the background color.
  • highlightTextColor: Defines the text/foreground color.

The highlightColor / highlightTextColor can get color values. If these attributes are not specified and highlighting is required, the front-end will use platform default highlighting colors.

A TREE style can for example be defined as follows:
<Style name="Table.custom_style">
  <StyleAttribute name="highlightCurrentRow" value="yes"/>
  <StyleAttribute name="highlightColor" value="red"/>
  <StyleAttribute name="highlightTextColor" value="yellow"/>
</Style>

Treeview controlled by DISPLAY ARRAY

When using a DISPLAY ARRAY to control a TREE container, the rendering of the current row is as follows:

  • By default, the current row is highlighted.
  • If highlightCurrentRow=yes, the current row is highlighted.
  • If highlightCurrentRow=no, the current row is not highlighted.
  • The attribute highlightCurrentCell is ignored.

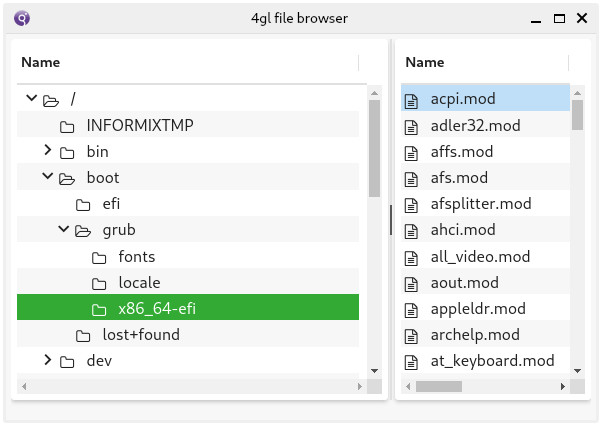

Figure: Treeview with current row highlight using DISPLAY ARRAY

Treeview rendering with with current row highlight color green and white text.
