Rich Text Editing in TEXTEDIT

The TEXTEDIT form item provides a rich text editing feature based on HTML.

Consider using the fglrichtext built-in webcomponent, instead of textFormat=html style attribute for TEXTEDIT.

By default, to avoid "Stored XSS" attacks, the front-end cleans the HTML sent to form elements to ensure no malicious script can be executed. This security control prevents for example to use HTML content such as "<a href='mailto: …". The default for the sanitize attribute is "yes". To disable the checking of HTML content send to form elements, set the sanitize style attribute to "no".

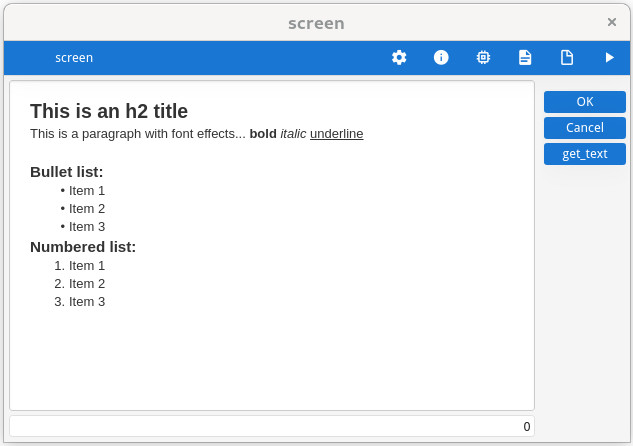

The figure shows a screenshot of a textedit field implementing the rich text editing feature. — Figure: Rich text editing interface

To enable rich text editing, set the textFormat style attribute to html:

<Style name="TextEdit.richText">
  <StyleAttribute name="textFormat" value="html" />
</Style>

Richtext toolbox

By default, the rich text editor toolbox is hidden. Use the showEditToolBox style attribute, to show a toolbox at the top the the text editor:

<Style name="TextEdit.richText">
  <StyleAttribute name="textFormat" value="html" />
  <StyleAttribute name="showEditToolBox" value="yes" />
</Style>

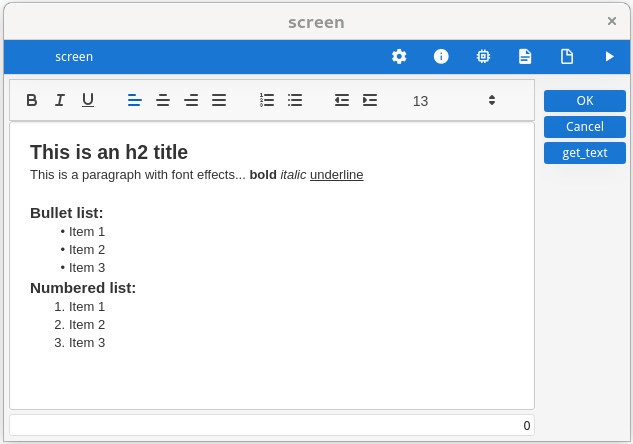

The figure is a screenshot of a textedit field implementing the rich text editing feature with the toolbox shown at the top. — Figure: Rich text editing interface with toolbox always displayed.
