Understanding folder tabs

A FOLDER element contains two or more PAGE elements, that can contain other containers such as GRID and TABLE. Each page gets a tab that can be selected by the user to switch to a given page.

In the next screenshots, a folder defines three pages identified by the tab titles "Fruits", "Vegetables" and "Meat".

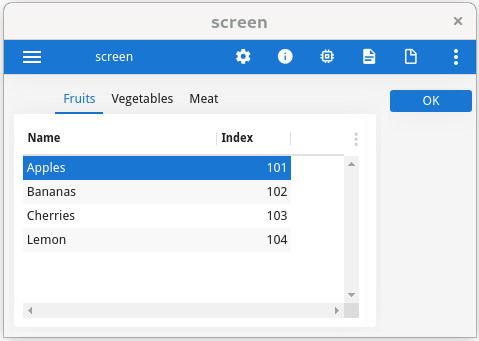

In the first screenshot, the "Fruits" folder page is selected:

Figure: Form with Folder Tabs showing first page

Form with foldertabs screenshot (page 1)

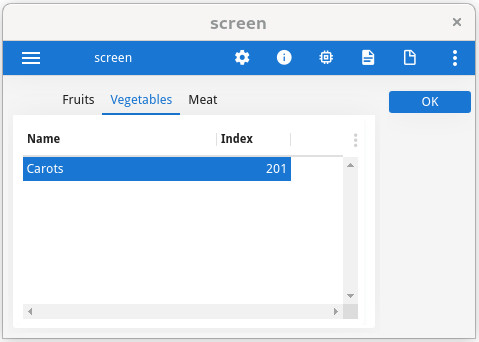

In the next screenshot, the "Vegetables" folder page is selected:

Figure: Form with Folder Tabs showing second page

Form with foldertabs screenshot (page 2)

To control a form with folder pages containers, use a DIALOG instruction block where each sub-dialog controls a specific folder page.

A given sub-dialog may control several folder pages, but in this case, it will not be possible to detect page selection within BEFORE INPUT, BEFORE DISPLAY or BEFORE CONSTRUCT triggers in DIALOG/END DIALOG.

A folder PAGE can define an ACTION attribute to fire an ON ACTION handler, when the folder tab is selected. This solution must only be used in specific cases.
