Form item dependencies in grids

Form items interact with each other in terms of width, depending on the front-end widget size.

This example illustrates how form items are dependent on each other inside the grid.
GRID
{
  [a      ]
  [b      ]
}
END

This .per implies that form items a and b start at the same position and have the same size, whatever a and b are.

This rule leads to very different results, especially when a large widget is assigned into a small number of cells.

Example:
LAYOUT
GRID
{
[a|b   ][f     ]
[c|d]   [e     ]
}
END
END
ATTRIBUTES
CHECKBOX a = FORMONLY.a, TEXT="A Checkbox";
EDIT b = FORMONLY.b;
EDIT c = FORMONLY.c;
CHECKBOX d = FORMONLY.d, TEXT="Another Checkbox";
EDIT e = FORMONLY.e;
EDIT f = FORMONLY.f;
END

The grid is computed with regard to the character cells in the form definition:

Figure: Grid layout

Grid layout diagram

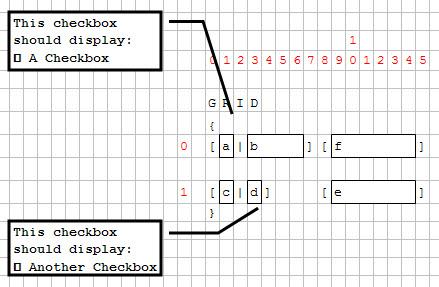

Figure: Grid layout with checkboxes

Grid layout with checkboxes diagram

Then the minimum size of each widget and the layout is computed.

Cells (0,1) and (1,3) contain a checkbox; these checkboxes will enlarge columns 1 and 3.

Figure: Enlarged columns

Enlarged columns diagram

Because the EDIT field "c" is defined to have the same width as checkbox "a", it will be much larger as expected.

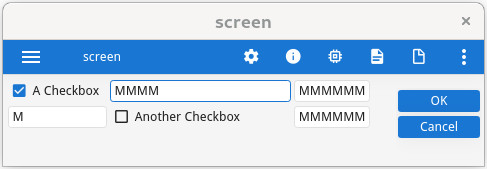

Figure: Resulting form 1

Resulting form screenshot 1
To avoid this visual result, you must assign a realistic number of grid cells for each form item. Consider however to use enough form cells to hold the values that can be displayed and entered in the fields:
GRID
{
[a       |b   ][f     ]
[c|d          ][e     ]
}
END

Even if the grid area is wider in the source form file, the real graphical result will be smaller.

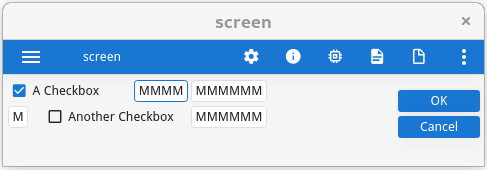

Figure: Resulting form 2

Resulting form screenshot 2
Furthermore, you can add a STRETCH=X attribute to the field "f", and make the last grid column stretch to the size of the parent container. Note that the underlying field "e" will stretch as well, because it belongs to the same grid column as "f":
EDIT f = formonly.f, STRETCH=X;

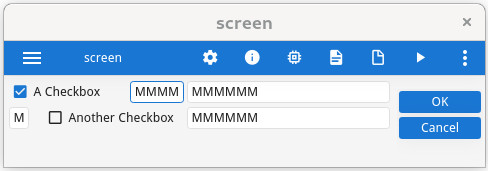

Figure: Resulting form 3

Resulting form screenshot 2
If the minimum width must be different from the number of grid cells used by the form item tag of items using the STRETCH=X attribute, add the STRETCHMIN=nn attribute, to force the minimum width:
GRID
{
Customer ID: [cid     ]  <-- width is 8 cells
...
}
END
...
EDIT cid: customer.cust_id, STRETCH=X, STRETCHMIN=3;
...
