DB Sync architecture

A DB Sync system includes a central server and several DB Sync client apps, each with its own local database.

The central server hosts the central database and a GAS running instances of the DB Sync server program to serve DB Sync client apps.

The DB Sync system requires a database schema describing the application SQL tables.

DB Sync client apps use the DB Sync client API module (dbsync_app) to log changes to the local database in the local change log and interact with the DB Sync service through RESTful HTTP requests.

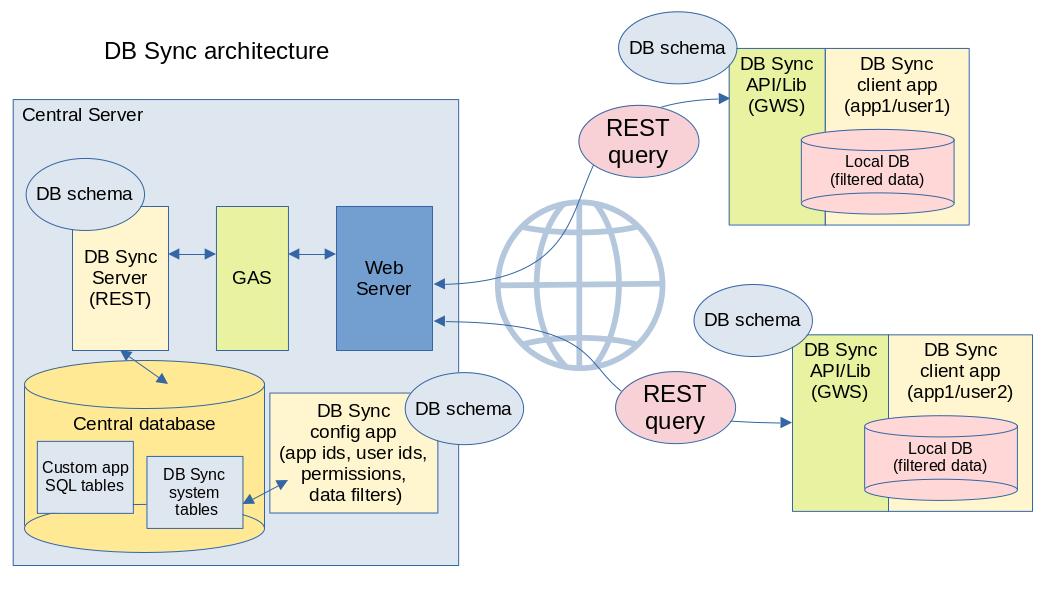

DB Sync server and client application performing a database synchronization. — Figure: The DB Sync Architecture

Server-side applications can directly connect to the central database; the applications can modify the data in the central database tables directly.

As a result, for all SQL tables shared between a DB Sync server-side app and any DB Sync client app, the server-side application must register its modifications in the DB Sync central change log. This allows the DB Sync system to detect modifications done by server-side apps and send these changes to the DB Sync client apps.

Server-side apps use the DB Sync server app API module (dbsync_srvapp) to register modifications in the central change log.
